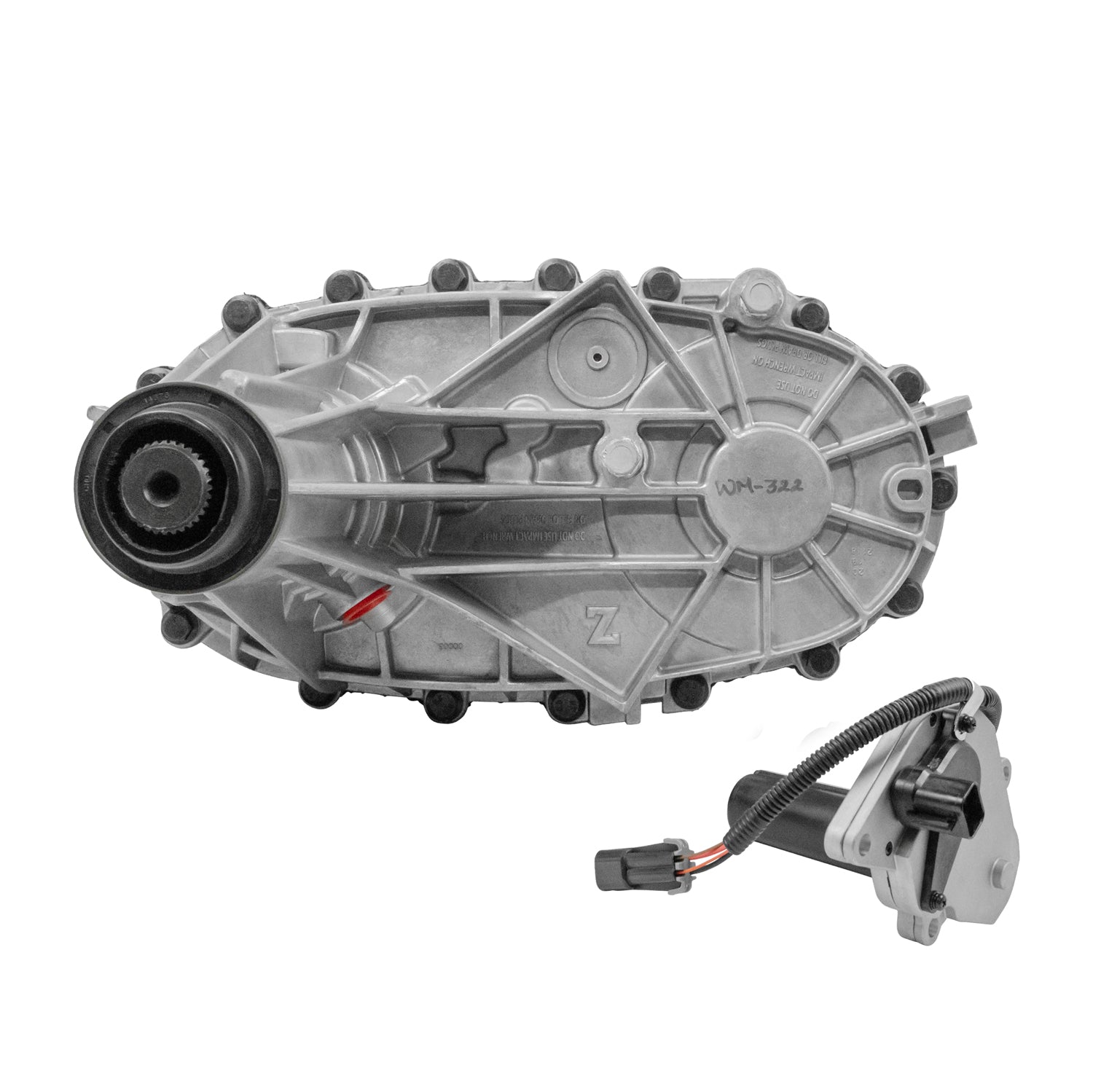

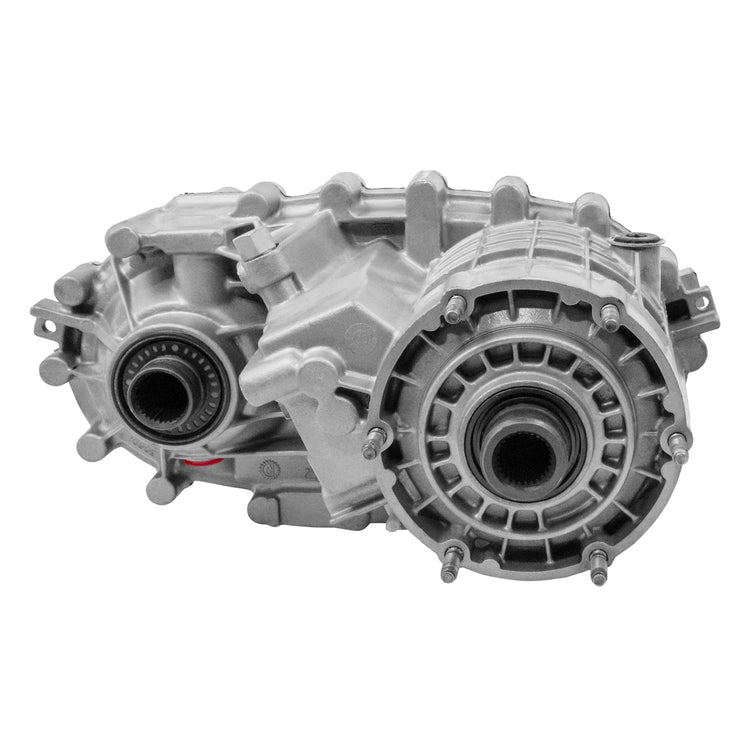

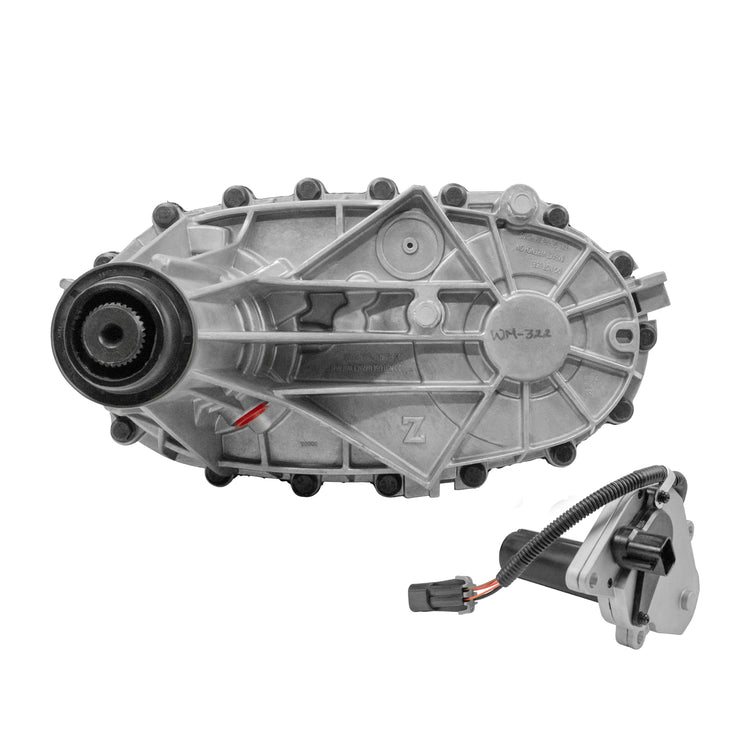

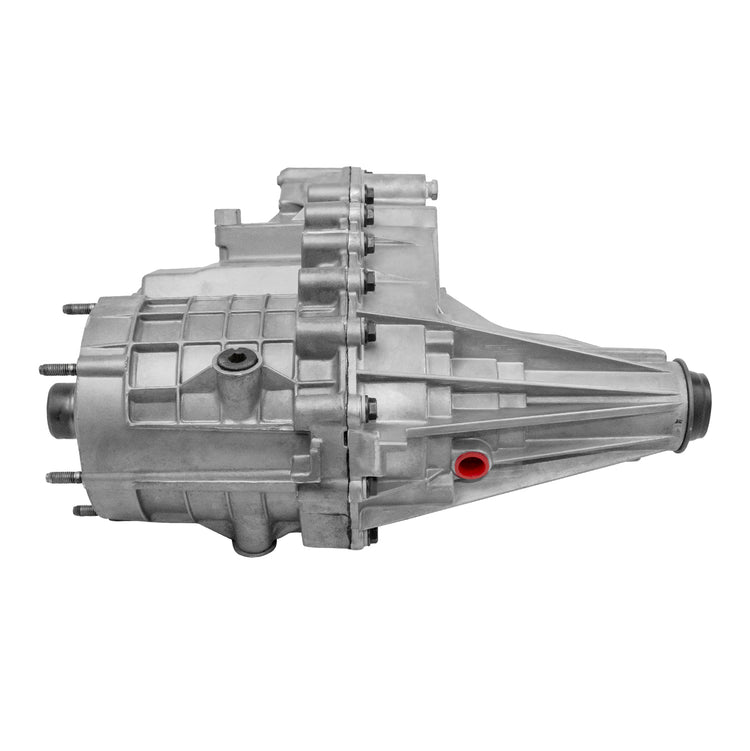

Remanufactured NP246 Transfer Case, 1999-2002 GM 1500 Series Trucks and Full Size SUV, With 4L60E Transmission, With Shift Motor
- Zumbrota Drivetrain
- SKU:RTC246G-1M
Built to order, ships when ready
SELECT build options
Please Confirm & Accept Refundable Core Charge *
What is this?
A core charge is an upfront deposit you pay for remanufactured parts. You will get it back when you return your old, salvageable part for recycling or rebuilding. Learn More
Recommended add-ons
Remanufactured NP246 Transfer Case, 1999-2002 GM 1500 Series Trucks and Full Size SUV, With 4L60E Transmission, With Shift Motor
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Product details
- Autotrack option NP8
- 27 Spline Input
- 32 Spline Rear Output
- Electric Shift - Double D Shift Shaft
- Shift motor is included
- Spin tested for shiftability and noise
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | Zumbrota Drivetrain |
| UPC | 883584783404 |
| Proxy Number | 78340 |
| Shipping Width | 24 in |
| Shipping Weight | 90.0000 LB |
Technical Notes
- NP246; 27 Spline Input, Autotrack Option Code NP8, Shift motor is included, Hollander Numbers: 412-394, 412-424, 412-426, Tag Numbers: 12572904, 12575125, 15007093, 15017351, 15017912, 15017942, 15037093, 15037351, 15039438, 15052506, 15709322, 15753790, 15761465, 15769438, 24228404, 24228410, Other Numbers: UMT137-1
