2023 Ford Super Duty 2.5in Complete Suspension Systems with Gas & Diesel Specific Applications

2023 Ford Super Duty 2.5in Complete Suspension Systems with Gas & Diesel Specific Applications

ICON Vehicle Dynamics presents our comprehensive array of 2.5" Complete Suspension Systems for 2023 Ford F250 & F350. ICON has optimized spring rate, ride height, and valving to the specific needs of the gas and diesel engine versions of these trucks. The Systems are arranged in 5 Stages with variations for Coil Spring or Coilver Conversion, along with two optional upgrades for our Radius Arms and/or rear leaf Expansion Packs, for a total of 54 different system configurations to meet virtually any budget or performance goal.



Please read through the following information to learn more about Stages 1 through 5 and their variations, and download the provided Price & Spec Sheet and Image Collections to add the information to your own sales channels.



Call us for more info: 877-978-8197



Before we jump into the details of Stages 1 through 5, here's a quick break-down of how each stage is further segregated:



Coil Spring Systems: Diesel or Gas



Our basic Stage 1 through 5 Suspension Systems for Ford Super Duty feature upgraded, ICON-engineered dual rate front coil springs to provide lift-height and superior performance over stock, without using coil spring spacers. Kits are available for either Gas or Diesel equipped trucks to optimize performance based on the difference in engine weight.






Coilover Conversion Systems



To fully realize the suspension performance potential of these trucks, ICON Coilover Conversion Systems delete the stock coil spring and shock configuration in favor of ICON 2.5 VS Series Coilovers to achieve better travel, damping, and suspension system packaging.






Upgrade: Radius Arm Systems

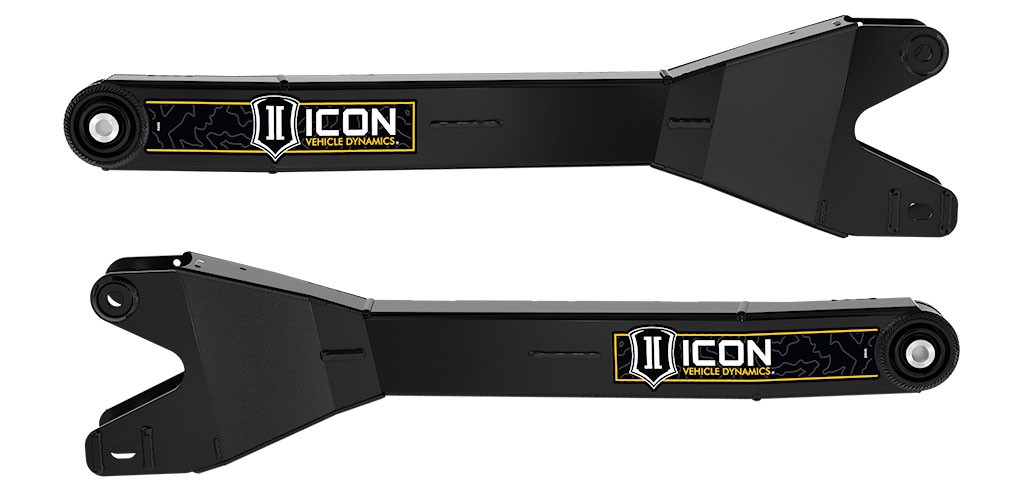

All 5 Ford Super Duty Suspension System Stages are available with our Radius Arm Kit upgrade. ICON radius arms are engineered to improve front axle alignment and allow bind-free travel and superior articulation.






Upgrade: Expansion Pack Systems

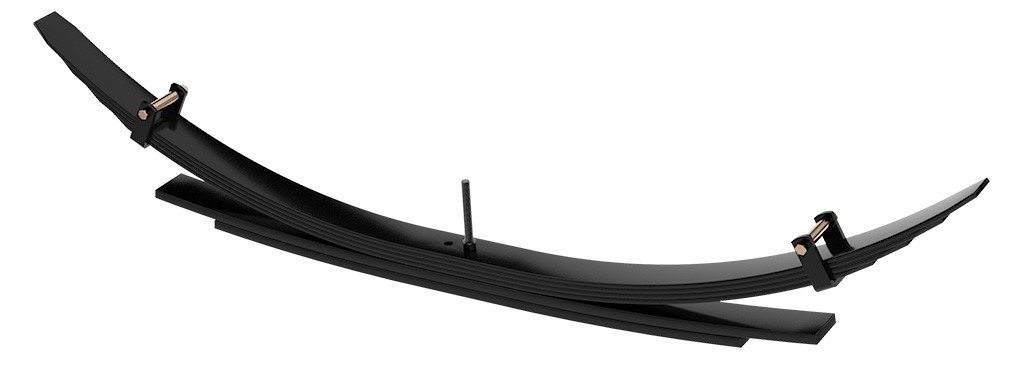

ICON's FSD Expansion Pack is a desirable upgrade to any of the Stages. This kit modifies the stock rear leaf springs to provide suspension height without lift blocks, and with superior rear suspension performance.






Call us for more info: 877-978-8197



Suspension System Stages

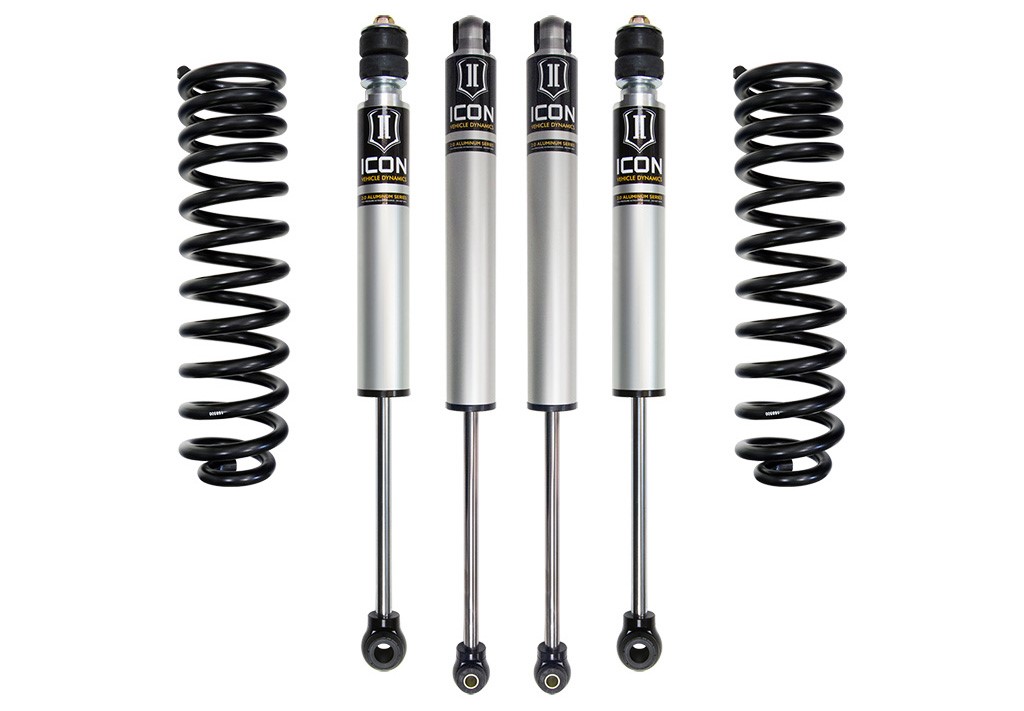

Stage 1 Suspension Systems



ICON Complete Suspension Systems for Ford Super Duty begin at Stage 1, featuring ICON Dual Stage Front Coil Springs and 2.0 Series Shock Absorbers (or 2.5VS Coilovers on Coilover Conversion Systems). Rear shocks are ICON 2.0 Series Internal Reservoir Shocks. This basic kit provides 2.5" of front-end lift while improving ride and handling over stock.



STAGE 1 COIL SPRING SYSTEMS:

K62561     20-23 FSD DIESEL 2.5" STAGE 1 SUSPENSION SYSTEM

K62561L   20-23 FSD DIESEL 2.5" STAGE 1 SUSPENSION SYSTEM W EXPANSION PACK

K62591     20-23 FSD GAS 2.5" STAGE 1 SUSPENSION SYSTEM

K62591L   20-23 FSD GAS 2.5" STAGE 1 SUSPENSION SYSTEM W EXPANSION PACK

        All Stage 1 Coil Spring Systems Include:

• 62512    23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT

 or 62513   23 FSD FRONT 2.5 DUAL RATE GAS SPRING KIT

• 66512    05-23 FSD 4WD 2.5" FRONT 2.0 VS IR (2)

• 66516    17-23 FSD REAR 0-2" 2.0 VS IR (2)

STAGE 1 COILOVER CONVERSION SYSTEMS:

K63141    17-23 FSD 2.5-3" STAGE 1 COILOVER CONVERSION SYSTEM

K63141L    17-23 FSD 2.5-3" STAGE 1 COILOVER CONVERSION SYSTEM W EXPANSION PACK

        All Stage 1 Coilover Conversion Systems Include:

• 61720    05-23 FSD 4WD 2.5-3" 2.5 VS RR BOLT IN CO CONVERSION KIT

• 66516    17-23 FSD REAR 0-2" 2.0 VS IR (2)

EXPANSION PACK Systems Also Include:

• 68507    08-23 F250/F350 LEAF SPRING EXPANSION PACK (2)

• 67004    11-23 FSD REAR 12" U-BOLT KIT

• 191201   1" CAST BLOCK KIT 3" WIDE

• 61002     05-23 FSD 2" REAR BUMP STOP SPACER KIT




Stage 2 Suspension Systems

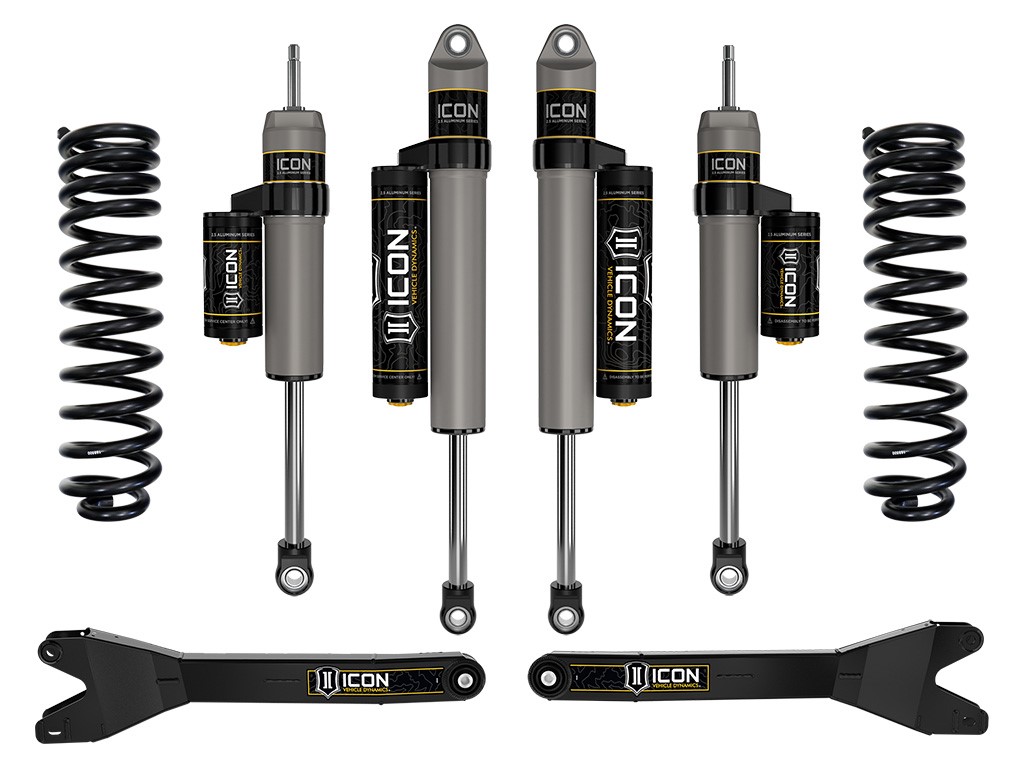

Stage 2 builds on Stage 1 with 2.5 VS Front Shocks or Coilovers, with Reservoirs. Rear shocks are also upgraded to 2.5 VS with piggyback reservoirs. These upgrades provide improved damping performance with larger pistons and valves, as well as increased fluid volume and heat dissipation.





STAGE 2 COIL SPRING SYSTEMS:

K62562    20-23 FSD DIESEL 2.5" STAGE 2 SUSPENSION SYSTEM

K62562L    20-23 FSD DIESEL 2.5" STAGE 2 SUSPENSION SYSTEM W EXPANSION PACK

K62562R    23 FSD DIESEL 2.5" STAGE 2 SUSPENSION SYSTEM W/ RADIUS ARMS

K62562RL  23 FSD DIESEL 2.5" STAGE 2 SYSTEM W/ RADIUS ARMS/EXPANSION PACK

K62592    20-23 FSD GAS 2.5" STAGE 2 SUSPENSION SYSTEM

K62592L    20-23 FSD  GAS 2.5" STAGE 2 SUSPENSION SYSTEM W EXPANSION PACK

K62592R    23 FSD GAS 2.5" STAGE 2 SUSPENSION SYSTEM W/ RADIUS ARMS

K62592RL    23 FSD GAS 2.5" STAGE 2 SYSTEM W/ RADIUS ARMS/EXPANSION PACK

        All Stage 2 Coil Spring Systems Include:

• 62512    23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT

 or 62513   23 FSD FRONT 2.5 DUAL RATE GAS SPRING KIT

• 67700P    05-23 FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR

• 37705P    99-23 FSD 0-3" REAR 2.5 VS PB PAIR

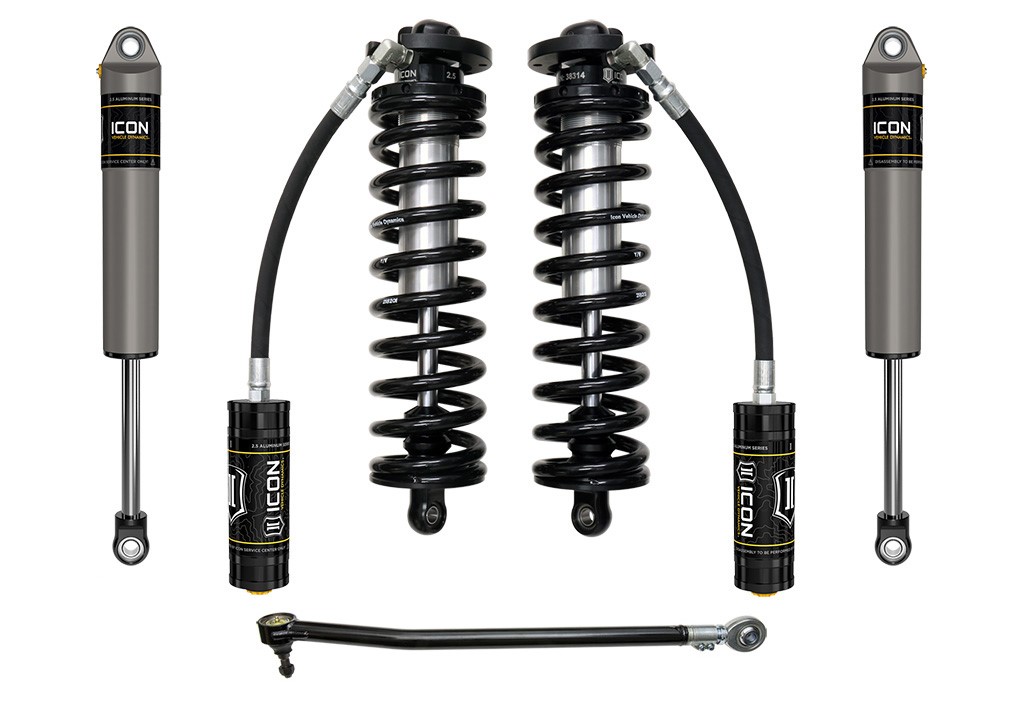

STAGE 2 COILOVER CONVERSION SYSTEMS:

K63142    17-23 FSD 2.5-3" STAGE 2 COILOVER CONVERSION SYSTEM

K63142L    17-23 FSD 2.5-3" STAGE 2 COILOVER CONVERSION SYSTEM W EXPANSION PACK

K63162R    23 FSD 2.5-3" STAGE 2 COILOVER CONVERSION SYSTEM W/ RADIUS ARMS

K63162RL    23 FSD 2.5-3" STAGE 2 CO CNV SYSTEM W/ RADIUS ARMS/EXPANSION PACK

        All Stage 3 Coilover Conversion Systems Include:

• 61720    05-23 FSD 4WD 2.5-3" 2.5 VS RR BOLT IN CO CONVERSION KIT

• 64038    17-23 FSD ADJ TRACK BAR KIT

• 37605P    99-23 FSD 0-3" REAR 2.5 VS IR PAIR

EXPANSION PACK Systems Also Include:

• 168507  08-23 F250/F350 LEAF SPRING EXPANSION PACK (2)

• 67004    11-23 FSD REAR 12" U-BOLT KIT

• 191201   1" CAST BLOCK KIT 3" WIDE

• 61002     05-23 FSD 2" REAR BUMP STOP SPACER KIT

RADIUS ARM Systems Also Include:

• 64042    23 FSD RADIUS ARM SYSTEM

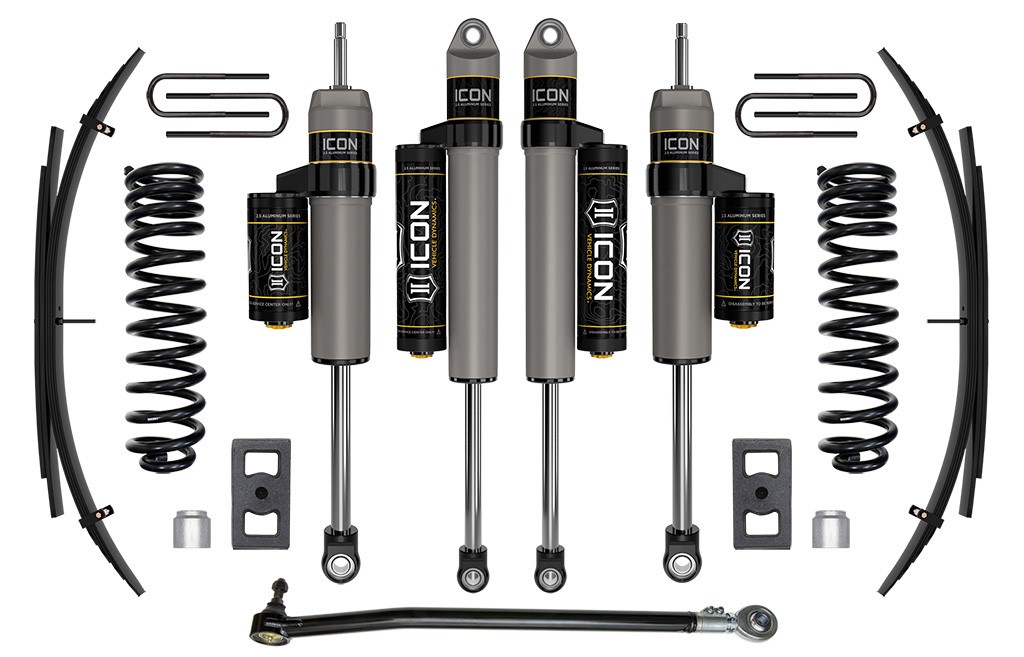

Stage 3 Suspension Systems



Stage 3 adds ICON's Adjustable Front Track Bar to help improve front axle alignment and suspension flexibility.





STAGE 3 COIL SPRING SYSTEMS:

K62563    20-23 FSD DIESEL 2.5" STAGE 3 SUSPENSION SYSTEM

K62563L    20-23 FSD DIESEL 2.5" STAGE 3 SUSPENSION SYSTEM W EXPANSION PACK

K62563R    23 FSD DIESEL 2.5" STAGE 3 SUSPENSION SYSTEM W/ RADIUS ARMS

K62563RL    23 FSD DIESEL 2.5" STAGE 3 SYSTEM W/ RADIUS ARMS/EXPANSION PACK

K62593    20-23 FSD GAS 2.5" STAGE 3 SUSPENSION SYSTEM

K62593L    20-23 FSD GAS 2.5" STAGE 3 SUSPENSION SYSTEM W EXPANSION PACK

K62593R    23 FSD GAS 2.5" STAGE 3 SUSPENSION SYSTEM W/ RADIUS ARMS

K62593RL    23 FSD GAS 2.5" STAGE 3 SYSTEM W/ RADIUS ARMS/EXPANSION PACK

        All Stage 3 Coil Spring Systems Include:

• 62512    23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT

 or 62513   23 FSD FRONT 2.5 DUAL RATE GAS SPRING KIT

• 67700P    05-23 FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR

• 37705P    99-23 FSD 0-3" REAR 2.5 VS PB PAIR

• 64038      17-23 FSD ADJ TRACK BAR KIT

STAGE 3 COILOVER CONVERSION SYSTEMS:

K63143    17-23 FSD 2.5-3" STAGE 3 COILOVER CONVERSION SYSTEM

K63143L    17-23 FSD 2.5-3" STAGE 3 COILOVER CONVERSION SYSTEM W EXPANSION PACK

K63163R    23 FSD 2.5-3" STAGE 3 COILOVER CONVERSION SYSTEM W/ RADIUS ARMS

K63163RL    23 FSD 2.5-3" STAGE 3 CO CNV SYSTEM W/ RADIUS ARMS/EXPANSION PACK

        All Stage 3 Coilover Conversion Systems Include:

• 61720    05-23 FSD 4WD 2.5-3" 2.5 VS RR BOLT IN CO CONVERSION KIT

• 64038    17-23 FSD ADJ TRACK BAR KIT

• 37705P    99-23 FSD 0-3" REAR 2.5 VS PB PAIR

EXPANSION PACK Systems Also Include:

• 168507  08-23 F250/F350 LEAF SPRING EXPANSION PACK (2)

• 67004    11-23 FSD REAR 12" U-BOLT KIT

• 191201   1" CAST BLOCK KIT 3" WIDE

• 61002     05-23 FSD 2" REAR BUMP STOP SPACER KIT

RADIUS ARM Systems Also Include:

• 64042    23 FSD RADIUS ARM SYSTEM

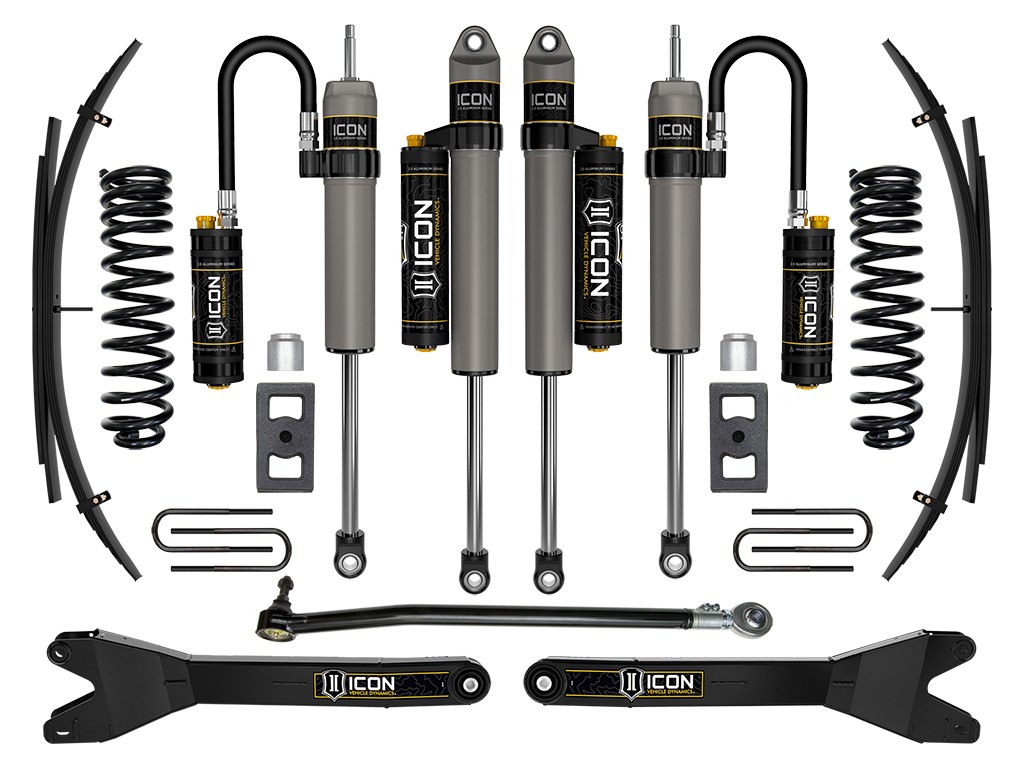

Stage 4 Suspension Systems



Stage 4 provides customization of suspension performance with the addition of ICON's Compression Damping Control Valve system on all four shocks. CDCV provides ten levels of manually adjustable compression damping to optimize performance for any on- or off-road conditions. The Stage 4 Coilover Conversion System also gains ICON's Dual Steering Stabilizer Kit.



STAGE 4 COIL SPRING SYSTEMS:

K62564    20-23 FSD DIESEL 2.5" STAGE 4 SUSPENSION SYSTEM

K62564L    20-23 FSD DIESEL 2.5" STAGE 4 SUSPENSION SYSTEM W EXPANSION PACK

K62564R    23 FSD DIESEL 2.5" STAGE 4 SUSPENSION SYSTEM W/ RADIUS ARMS

K62564RL    23 FSD DIESEL 2.5" STAGE 4 SYSTEM W/ RADIUS ARMS/EXPANSION PACK

K62594    20-23 FSD GAS 2.5" STAGE 4 SUSPENSION SYSTEM

K62594L    20-23 FSD GAS 2.5" STAGE 4 SUSPENSION SYSTEM W EXPANSION PACK

K62594R    23 FSD GAS 2.5" STAGE 4 SUSPENSION SYSTEM W/ RADIUS ARMS

K62594RL    23 FSD GAS 2.5" STAGE 4 SYSTEM W/ RADIUS ARMS/EXPANSION PACK

        All Stage 4 Coil Spring Systems Include:

•             62512    23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT

 or 62513   23 FSD FRONT 2.5 DUAL RATE GAS SPRING KIT

• 67800CP   05-23 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDCV PAIR

• 37705CP   99-23 FSD 0-3" REAR 2.5 VS PB CDCV PAIR

• 64038        17-23 FSD ADJ TRACK BAR KIT

STAGE 4 COILOVER CONVERSION SYSTEMS:

K63164    23 FSD 2.5-3" STAGE 4 COILOVER CONVERSION SYSTEM

K63164L    23 FSD 2.5-3" STAGE 4 COILOVER CONVERSION SYSTEM W/ EXPANSION PACKS

K63164R    23 FSD 2.5-3" STAGE 4 COILOVER CONVERSION SYSTEM W/ RADIUS ARMS

K63164RL    23 FSD 2.5-3" STAGE 4 C/O CONV SYSTEM W/ RADIUS ARMS/EXPANSION PACKS

        All Stage 4 Coilover Conversion Systems Include:

• 61720C    05-23 FSD 2.5" 2.5 VS RR CDCV BOLT IN CO CONVERSION KIT

• 65002    23 FSD DUAL STABILIZER KIT

• 36511    99-23 FSD 4WD STABILIZER(DUAL OPPOSING) 2.0 VS IR (2)

• 37705CP   99-23 FSD 0-3" REAR 2.5 VS PB CDCV PAIR

• 64038        17-23 FSD ADJ TRACK BAR KIT

EXPANSION PACK Systems Also Include:

• 168507  08-23 F250/F350 LEAF SPRING EXPANSION PACK (2)

• 67004    11-23 FSD REAR 12" U-BOLT KIT

• 191201   1" CAST BLOCK KIT 3" WIDE

• 61002     05-23 FSD 2" REAR BUMP STOP SPACER KIT

RADIUS ARM Systems Also Include:

• 64042    23 FSD RADIUS ARM SYSTEM

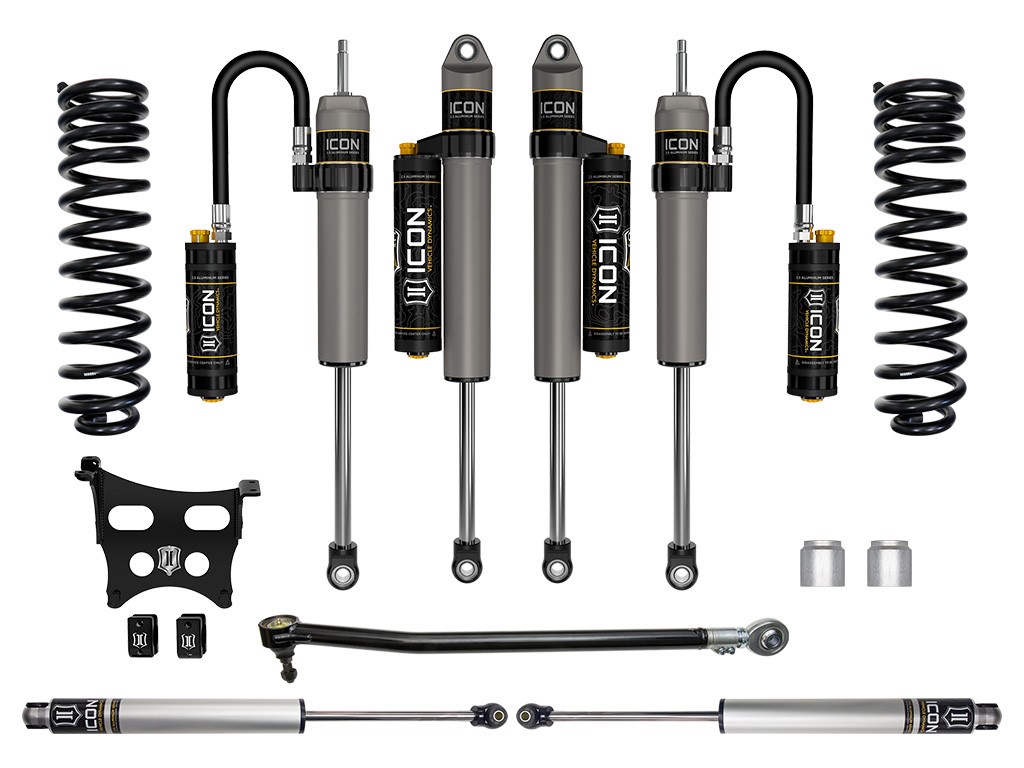

Stage 5 Suspension Systems



At Stage 5, the Coil Spring and Coilover Conversion systems part ways significantly. The Stage 5 Gas/Diesel Coil Spring Systems gain ICON's Dual Steering Stabilizer Kit and 2" Bump Stop Spacer Kit. And the Stage 5 Coilover Conversion System takes advantage of the coilover's packaging advantage to add an additional pair 2.5 VS front shocks with piggyback reservoirs and CDCV's for ultimate suspension performance.



STAGE 5 COIL SPRING SYSTEMS:

K62565    23 FSD DIESEL 2.5" STAGE 5 SUSPENSION SYSTEM

K62565L    23 FSD DIESEL 2.5" STAGE 5 SUSPENSION SYSTEM W/ EXPANSION PACKS

K62565R    23 FSD DIESEL 2.5" STAGE 5 SUSPENSION SYSTEM W/ RADIUS ARMS

K62565RL    23 FSD DIESEL 2.5" STAGE 5 SYSTEM W/ RADIUS ARMS/EXPANSION PACKS

K62595    23 FSD GAS 2.5" STAGE 5 SUSPENSION SYSTEM

K62595L    23 FSD GAS 2.5" STAGE 5 SUSPENSION SYSTEM W/ EXPANSION PACKS

K62595R    23 FSD GAS 2.5" STAGE 5 SUSPENSION SYSTEM W/ RADIUS ARMS

K62595RL    23 FSD GAS 2.5" STAGE 5 SYSTEM W/ RADIUS ARMS/EXPANSION PACKS

        All Stage 5 Coil Spring Systems Include:

• 62512    23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT

 or 62513   23 FSD FRONT 2.5 DUAL RATE GAS SPRING KIT

• 67800CP    05-23 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDCV PAIR

• 37705CP    99-23 FSD 0-3" REAR 2.5 VS PB CDCV PAIR

• 64038    17-23 FSD ADJ TRACKBAR KIT

• 65002    23 FSD DUAL STABILIZER KIT

• 36511    99-23 FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR (2)

• 64037    05-23 FSD 2" BUMP STOP SPACER KIT

STAGE 5 COILOVER CONVERSION SYSTEMS:

K63165    23 FSD 2.5-3" STAGE 5 COILOVER CONVERSION SYSTEM

K63165L    23 FSD 2.5-3" STAGE 5 COILOVER CONVERSION SYSTEM W/ EXPANSION PACKS

K63165R    23 FSD 2.5-3" STAGE 5 COILOVER CONVERSION SYSTEM W/ RADIUS ARMS

K63165RL    23 FSD 2.5-3" STAGE 5 C/O CONV SYSTEM W/ RADIUS ARMS/EXPANSION PACKS

        All Stage 5 Coilover Conversion Systems Include:

• 61720C    05-23 FSD 2.5" 2.5 VS RR CDCV BOLT IN CO CONVERSION KIT

• 67800CP    05-23 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDCV PAIR

• 37705CP    99-23 FSD 0-3" REAR 2.5 VS PB CDCV PAIR

• 64038    17-23 FSD ADJ TRACKBAR KIT

• 65002    23 FSD DUAL STABILIZER KIT

• 36511    99-23 FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR (2)

• 611003    2.5 RESI DOUBLER MOUNT 7.5" KIT

EXPANSION PACK Systems Also Include:

• 168507  08-23 F250/F350 LEAF SPRING EXPANSION PACK (2)

• 67004    11-23 FSD REAR 12" U-BOLT KIT

• 191201   1" CAST BLOCK KIT 3" WIDE

• 61002     05-23 FSD 2" REAR BUMP STOP SPACER KIT

RADIUS ARM Systems Also Include:

• 64042    23 FSD RADIUS ARM SYSTEM
