New Product: 2021-23 Ford F150 4.5in Suspension Systems

New Product: 2021-23 Ford F150 4.5in Suspension Systems

ICON is proud to introduce a range of 4.5-inch Complete Suspension System "Stage" kits for 2021 and newer Ford F150. All of these kits feature performance-proven ICON 2.5 Vehicle Series Front Coilovers and Rear Shocks, Tubular Front Upper Control Arms with ICON's patented Delta Joint PRO, and Ductile Iron Steering Knuckles.



Each of these Stages comes with ICON engineered Ductile Iron steering knuckle for improved ball joint angles. All Stages feature ICON 2.5 VS Front Coilovers which provide a 20% increase in travel over stock while imparting superior ride quality and off-road handling. ICON Vehicle Series shocks are custom-tuned for each specific vehicle application to maximize suspension performance. All stages also feature ICON Tubular Front Upper Control Arms with Delta Joint Pro to provide bind-free travel as well as castor correction to maintain superior drivability.





Keep scrolling to see each of the Five Stages or use the download buttons below to grab all of the important product information, data, images, and more to add these items to your website and inform your customers!

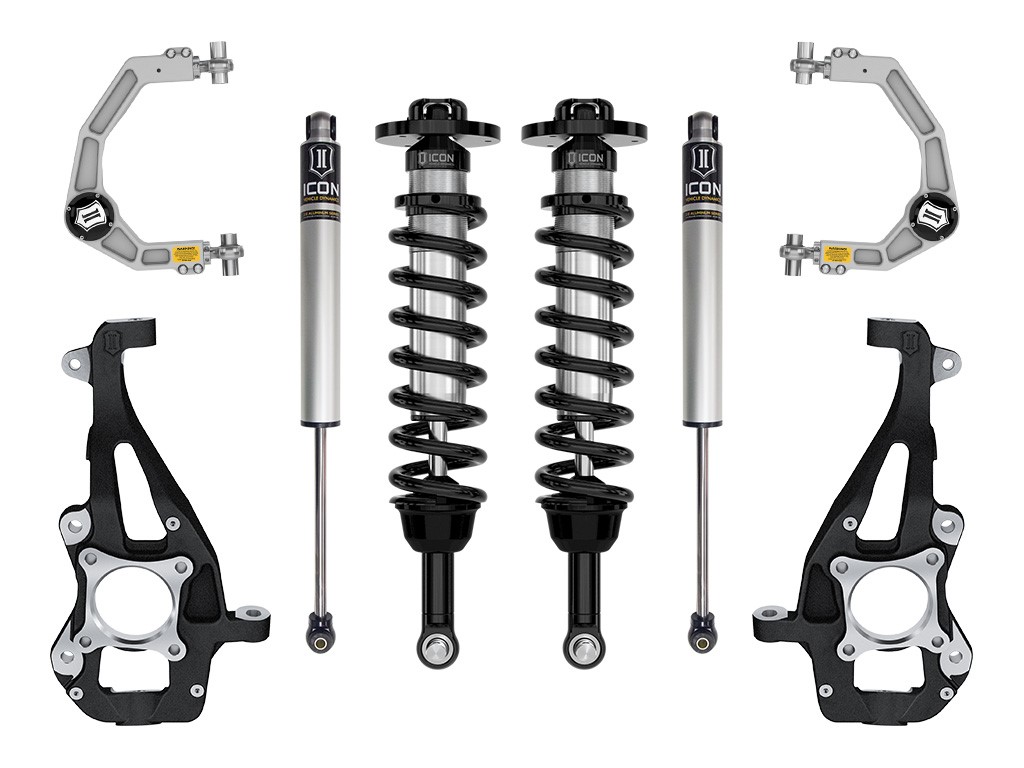

Stage 1

Our basic 4.5-inch performance stage for the F150, featuring internal reservoir front coilovers, 2.0 rear shocks, tubular UCAs with the Delta Joint Pro, and ductile iron front steering knuckles.



K93141T    21-23 FORD F150 4WD 3.5-4.5" STAGE 1 SUSP SYSTEM W TUBULAR UCA

K93141    21-23 FORD F150 4WD 3.5-4.5" STAGE 1 SUSP SYSTEM W BILLET UCA



SYSTEM INCLUDES

  • 91723    21-23 F150 TREMOR 2.5-3" 2.5 VS IR COILOVER KIT
  • 98522DJ    21-23 F150 TUBULAR UCA DJ PRO KIT or 98523DJ    21-23 F150 BILLET UCA DJ PRO KIT
  • 96518    09-23 F150 2/4WD 04-08 F150 4WD REAR VS 2.0 IR (2)
  • 94000    21-23 F150 4WD FRONT KNUCKLE KIT





KEY FEATURES:

  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Utilizes the NEW Delta Joint Pro
  • Vehicle-specific tuned front and rear shocks for superior damping and vehicle control
  • PTFE-lined spherical bearings and application-specific mounting hardware
  • Adjustable coilovers from 3-4.5" of lift height
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion-resistant CAD-plated coilover shock body with 7/8 shaft
  • High-strength alloy CNC machined lower bar pin
  • FK rod end bearings for extended longevity and minimal deflection
  • 2.0 aluminum body rear IFP shock with 5/8" polished shaft
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install
  • Tubular UCA for added strength, durability, and an additional degree of caster for better drivability
  • Ductile Iron steering knuckle for improved ball joint angles

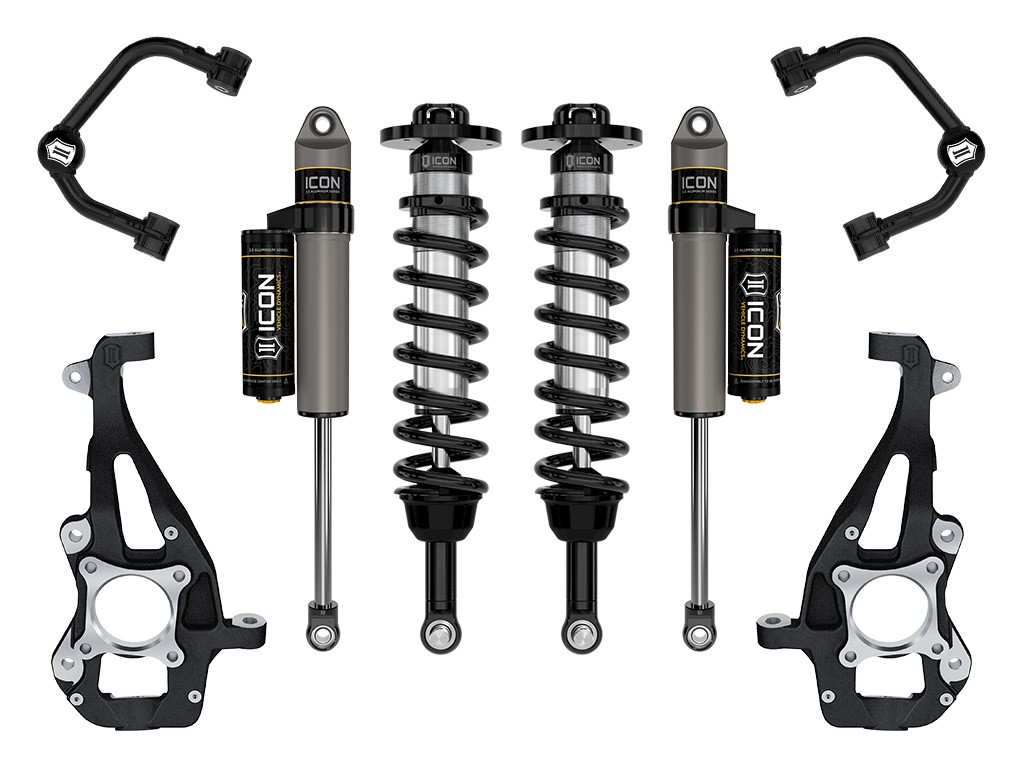

Stage 2

Stage 2 ups the ante with the addition of 2.5 VS rear shocks with piggyback reservoirs. The increased fluid capacity and surface area will provide superior heat dissipation.



K93142T    21-23 FORD F150 4WD 3.5-4.5" STAGE 2 SUSP SYSTEM W TUBULAR UCA

K93142    21-23 FORD F150 4WD 3.5-4.5" STAGE 2 SUSP SYSTEM W BILLET UCA



SYSTEM INCLUDES

  • 91723    21-23 F150 TREMOR 2.5-3" 2.5 VS IR COILOVER KIT
  • 98522DJ    21-23 F150 TUBULAR UCA DJ PRO KIT or 98523DJ    21-23 F150 BILLET UCA DJ PRO KIT
  • 97721P    21-23 F150 4WD TREMOR REAR 2.5 VS PB PAIR
  • 94000    21-23 F150 4WD FRONT KNUCKLE KIT



KEY FEATURES:

  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Utilizes the NEW Delta Joint Pro joint
  • Vehicle-specific tuned front and rear shocks for superior damping and vehicle control
  • PTFE-lined spherical bearings and application-specific mounting hardware
  • Adjustable coilovers from 3-4.5" of lift height
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion-resistant CAD-plated coilover shock body with 7/8 shaft
  • High-strength alloy CNC machined lower bar pin
  • FK rod end bearings for extended longevity and minimal deflection
  • 2.0 aluminum body rear IFP shock with 5/8" polished shaft
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install
  • Tubular UCA for added strength, durability, and an additional degree of caster for better drivability
  • Ductile Iron steering knuckle for improved ball joint angles

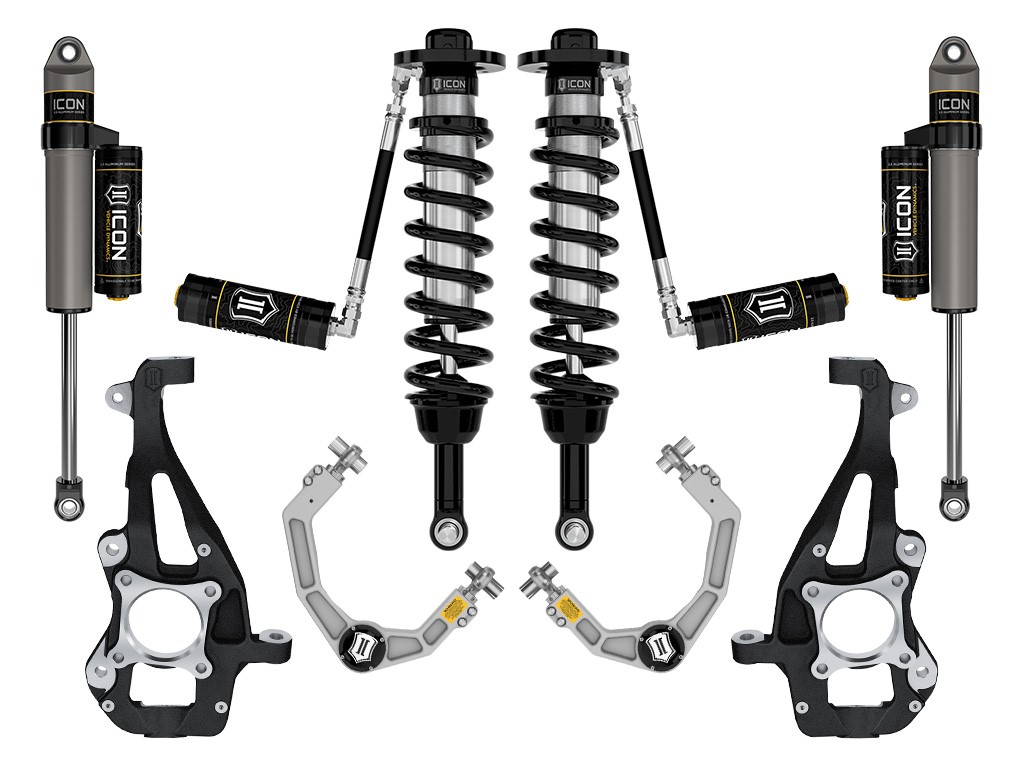

Stage 3

Stage 3 is a balanced system with front and rear reservoirs for increased shock fluid capacity. The improved heat dissipation will maintain damping performance through longer, faster, rougher off-road sections without fading.



K93143T    21-23 FORD F150 4WD 3.5-4.5" STAGE 3 SUSP SYSTEM W TUBULAR UCA

K93143    21-23 FORD F150 4WD 3.5-4.5" STAGE 3 SUSP SYSTEM W BILLET UCA



SYSTEM INCLUDES

  • 91824    21-23 F150 TREMOR 2.5-3" 2.5 VS RR COILOVER KIT
  • 98522DJ    21-23 F150 TUBULAR UCA DJ PRO KIT
  • or 98523DJ    21-23 F150 BILLET UCA DJ PRO KIT
  • 97721P    21-23 F150 4WD TREMOR REAR 2.5 VS PB PAIR
  • 94000    21-23 F150 4WD FRONT KNUCKLE KIT



KEY FEATURES:

  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Utilizes the NEW Delta Joint Pro joint
  • Vehicle-specific tuned front and rear shocks for superior damping and vehicle control
  • PTFE-lined spherical bearings and application-specific mounting hardware
  • Adjustable coilovers from 3-4.5” of lift height
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion-resistant CAD-plated coilover shock body with 7/8 shaft
  • High-strength alloy CNC machined lower bar pin
  • FK rod end bearings for extended longevity and minimal deflection
  • 2.5 Series rear piggyback reservoir shocks with 7/8" shaft
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install
  • Tubular uca for added strength, durability, and an additional degree of caster for better drivability
  • Ductile Iron steering knuckle for improved ball joint angles

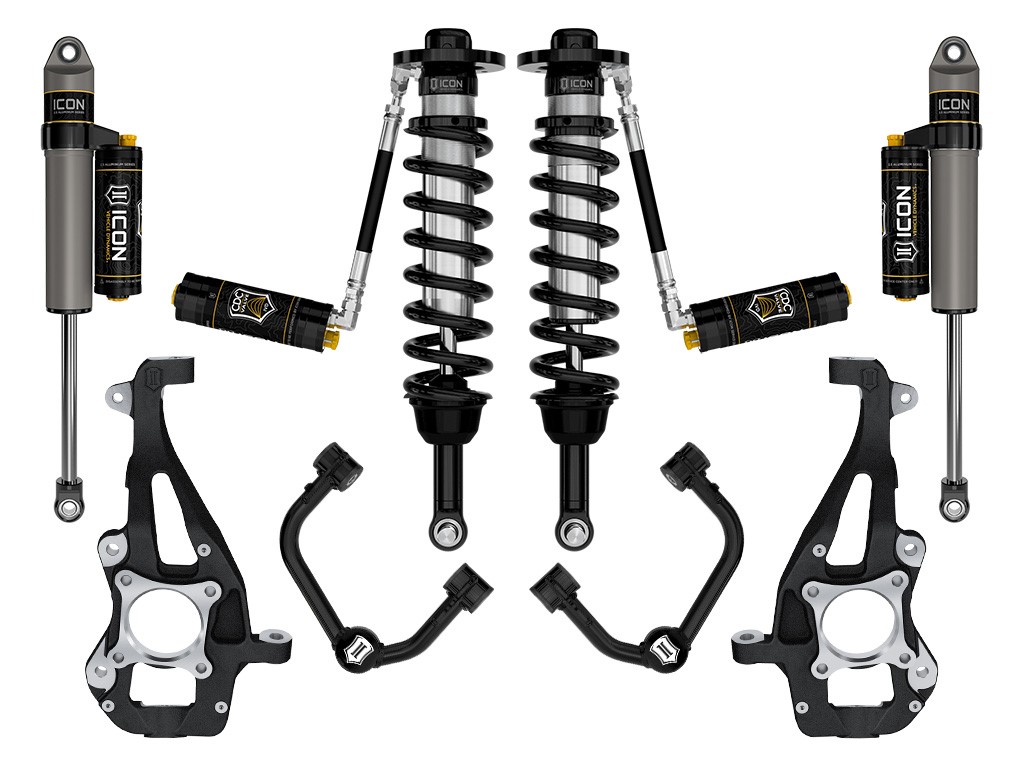

Stage 4

Stage 4 lets you dial in your suspension performance with ICON's Compression Damping Control Valve (CDCV) on each shock, allowing manual adjustability at all four corners.



K93144T    21-23 FORD F150 4WD 3.5-4.5"STAGE 4 SUSP SYSTEM W TUBULAR UCA

K93144    21-23 FORD F150 4WD 3.5-4.5" STAGE 4 SUSP SYSTEM W BILLET UCA



SYSTEM INCLUDES

  • 91824C    21-23 F150 TREMOR 2.5-3" 2.5 VS RR CDCV COILOVER KIT
  • 98522DJ    21-23 F150 TUBULAR UCA DJ PRO KIT or 98523DJ    21-23 F150 BILLET UCA DJ PRO KIT
  • 97721CP    21-23 F150 4WD TREMOR REAR 2.5 VS PB CDCV PAIR
  • 94000    21-23 F150 4WD FRONT KNUCKLE KIT



KEY FEATURES:

  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Utilizes the NEW Delta Joint Pro joint
  • Vehicle-specific tuned front and rear shocks for superior damping and vehicle control
  • PTFE-lined spherical bearings and application-specific mounting hardware
  • Adjustable coilovers from 3-4.5" of lift height
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion-resistant CAD-plated coilover shock body with 7/8 shaft
  • High-strength alloy CNC machined lower bar pin
  • FK rod end bearings for extended longevity and minimal deflection
  • 2.5 Series rear piggyback reservoir shocks with 7/8" shaft
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install
  • Tubular uca for added strength, durability, and an additional degree of caster for better
  • drivability
  • 2.5 remote reservoir shocks
  • Ductile Iron steering knuckle for improved ball joint angles

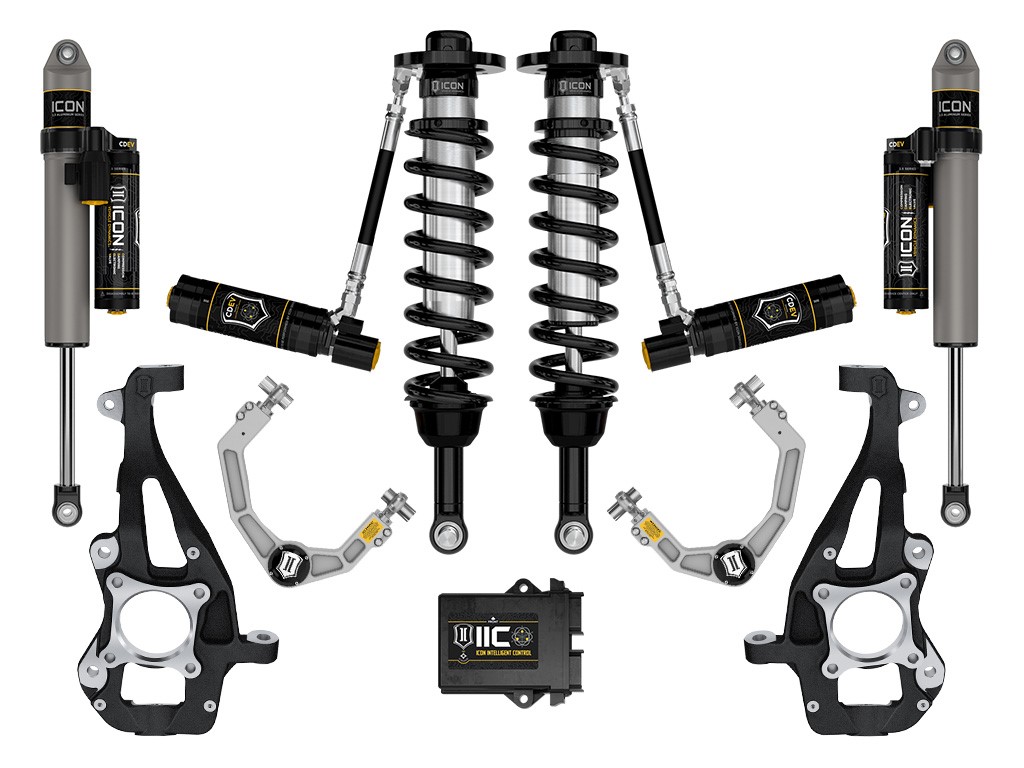

Stage 5



Stage 5 has the incredible CDEV system, ICON's award-winning technology for electronically controlling shock performance, on the fly and with lightning-fast, reactive adjustment. The ICON Intelligent Control (IIC) system reacts to G-inputs and commands shock adjustments in milliseconds to react to any situation in real-time.



K93145T    21-23 FORD F150 4WD 3.5-4.5" STAGE 5 SUSP SYSTEM W TUBULAR UCA

K93145    21-23 FORD F150 4WD 3.5-4.5" STAGE 5 SUSP SYSTEM W BILLET UCA



SYSTEM INCLUDES

  • 91824E    21-23 F150 TREMOR 2.5-3" 2.5 VS RR CDEV COILOVER KIT
  • 98522DJ    21-23 F150 TUBULAR UCA DJ PRO KIT or 98523DJ    21-23 F150 BILLET UCA DJ PRO KIT
  • 93500    15-23 F150 & 17-22 FSD IIC INSTALL KIT
  • 97721EP    21-23 F150 4WD TREMOR REAR 2.5 VS PB CDEV PAIR
  • 94000    21-23 F150 4WD FRONT KNUCKLE KIT



KEY FEATURES:

  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Utilizes the NEW Delta Joint Pro joint
  • Vehicle-specific tuned front and rear shocks for superior damping and vehicle control
  • PTFE-lined spherical bearings and application-specific mounting hardware
  • Adjustable coilovers from 3-4.5" of lift height
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion-resistant CAD-plated coilover shock body with 7/8 shaft
  • High-strength alloy CNC machined lower bar pin
  • FK rod end bearings for extended longevity and minimal deflection
  • 2.5 Series rear piggyback reservoir shocks with 7/8" shaft
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install
  • Tubular uca for added strength, durability, and an additional degree of caster for better
  • drivability
  • ICON's CDE Valve technology allows for in-vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • Ductile Iron steering knuckle for improved ball joint angles
