New ICON Products! 2023 Ford Super Duty 4.5in Complete Suspension Systems with Gas & Diesel Specific Applications

New ICON Products! 2023 Ford Super Duty 4.5in Complete Suspension Systems with Gas & Diesel Specific Applications

The ICON Vehicle Dynamics presents our comprehensive array of 4.5" Complete Suspension Systems for 2023 Ford F250 & F350. ICON has optimized spring rate, ride height, and valving to the specific needs of the gas and diesel engine versions of these trucks. The Systems are arranged in 9 Stages with variations for Gas or Diesel Coil Spring or Coilver Conversion, along with two optional upgrades for our Radius Arms and/or rear leaf Expansion Packs, for a total of 78 different system configurations to meet virtually any budget or performance goal.

Please read through the following information to learn more about Stages 1 through 9 and their variations, and download the provided Price & Spec Sheet and Image Collections to add the information to your own sales channels.




ICON SUSPENSION SYSTEM STAGES



Stage 1 through 8 Suspension Systems for Ford Super Duty feature upgraded, ICON-engineered dual rate front coil springs to provide 4.5 inches of front end lift height and superior performance over stock, without using coil spring spacers (Stage 9 is only available in Coilover Conversion variation). Basic kits include radius arm drop brackets, rear leaf spring blocks, and extended brake lines. Kits are available for either Gas or Diesel-equipped trucks to optimize performance based on the difference in engine weight.





To fully realize the suspension performance potential of these trucks, ICON Coilover Conversion Systems delete the stock coil spring and shock configuration in favor of ICON 2.5 VS Series Coilovers to achieve better travel, damping, and suspension system packaging.




4-LINK FRONT SUSPENSION SYSTEMS

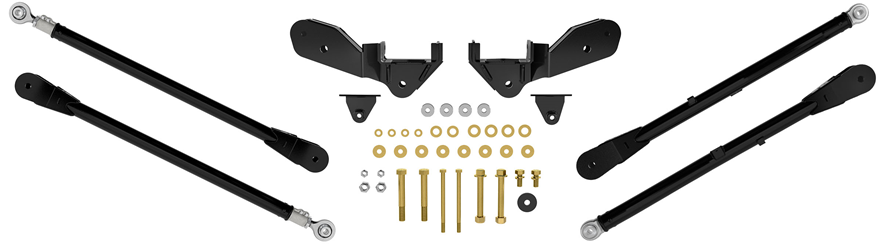

Stages 6 and up are available with ICON's 4-Link Front Suspension System, including our heavy-duty 4-link bracket kit along with upper and lower links with on-the-vehicle adjustability.






UPGRADE: COILOVER CONVERSION SYSTEMS

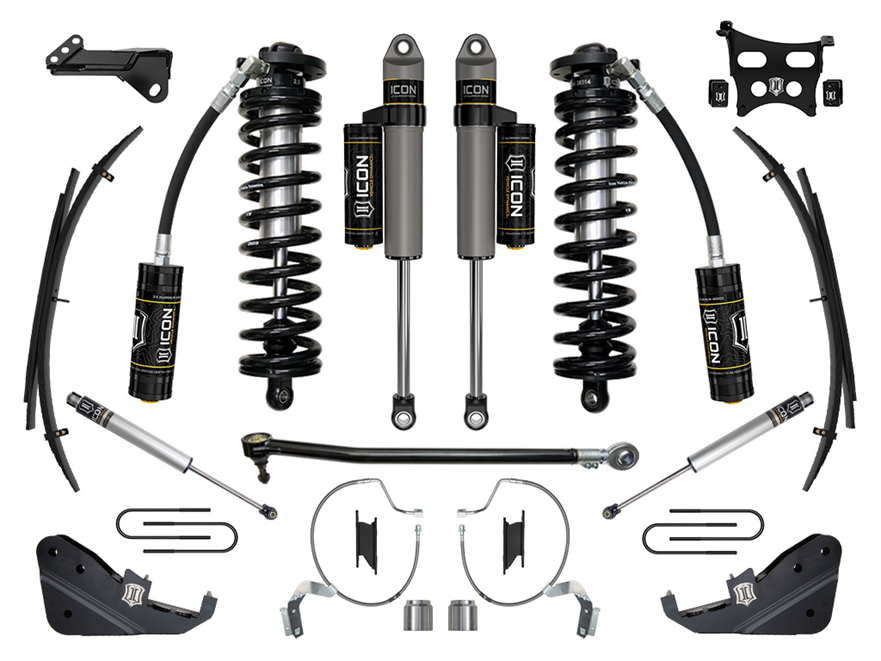

K63172 Shown (Stage 2 Coilover Conversion)




UPGRADE: RADIUS ARM SYSTEMS

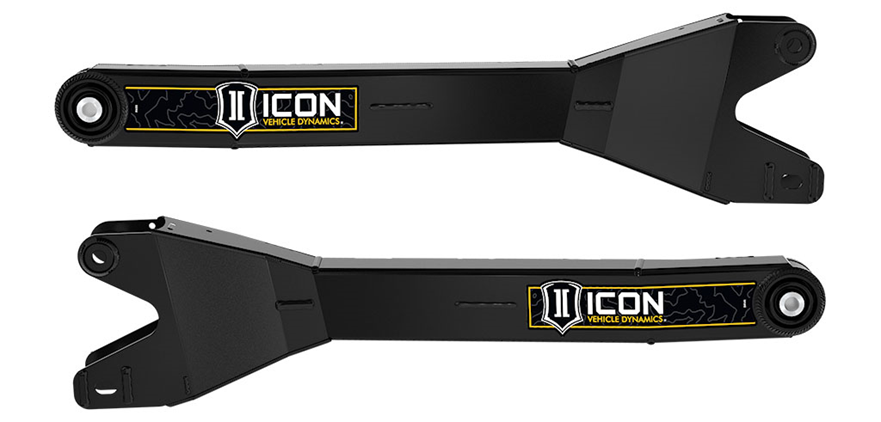

Stages 3 and up of our Ford Super Duty Suspension System Stages are available with our Radius Arm Kit upgrade. ICON radius arms are engineered to improve front axle alignment and allow bind-free travel and superior articulation.




UPGRADE: EXPANSION PACK SYSTEMS

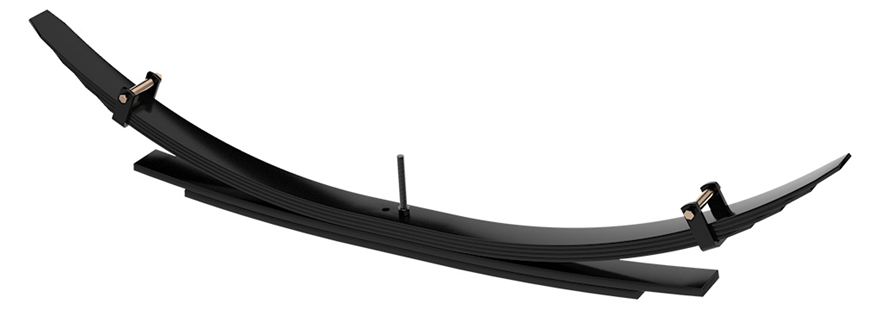

ICON's FSD Expansion Pack is a desirable upgrade to any of the Stages. This kit modifies the stock rear leaf springs to provide suspension height without lift blocks, and with superior rear suspension performance.




Suspension Stage Systems



Stage 1 Suspension Systems



ICON Complete Suspension Systems for Ford Super Duty begin at Stage 1, featuring ICON Dual Stage Front Coil Springs and 2.0 Series Shock Absorbers (or 2.5VS Coilovers on Coilover Conversion Systems). Rear shocks are ICON 2.0 Series Internal Reservoir Shocks. This basic kit provides 4.5" of front-end lift while improving ride and handling over stock.

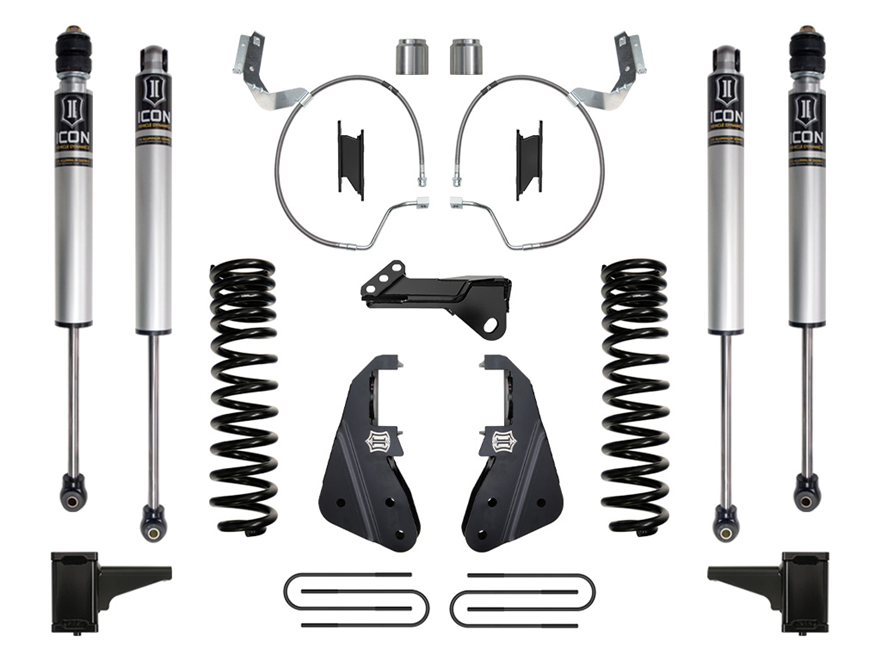

K64531/K64541 Shown



K64541    23 FORD F250/F350 4.5" STAGE 1 SUSPENSION SYSTEM DIESEL
K64541L    23 FORD F250/F350 4.5" STAGE 1 SUSPENSION SYSTEM DIESEL W/ EXPANSION PACKS
K64531    23 FORD F250/F350 4.5" STAGE 1 SUSPENSION SYSTEM GAS
K64531L    23 FORD F250/F350 4.5" STAGE 1 SUSPENSION SYSTEM GAS W/ EXPANSION PACKS
K63171    23 FORD F250/F350 4-5.5" STAGE 1 COILOVER CONVERSION SYSTEM
K63171L    23 FORD F250/F350 4-5.5" STAGE 1 COILOVER CONVERSION SYSTEM W/ EXPANSION PACKS




STAGE 2 SUSPENSION SYSTEMS



Stage 2 builds on Stage 1 by adding remote shock reservoirs to the front and rear shocks. The remote reservoirs add fluid capacity for increased heat dissipation. Stage 2 also adds ICON's Dual Steering Stabilizer Kit.

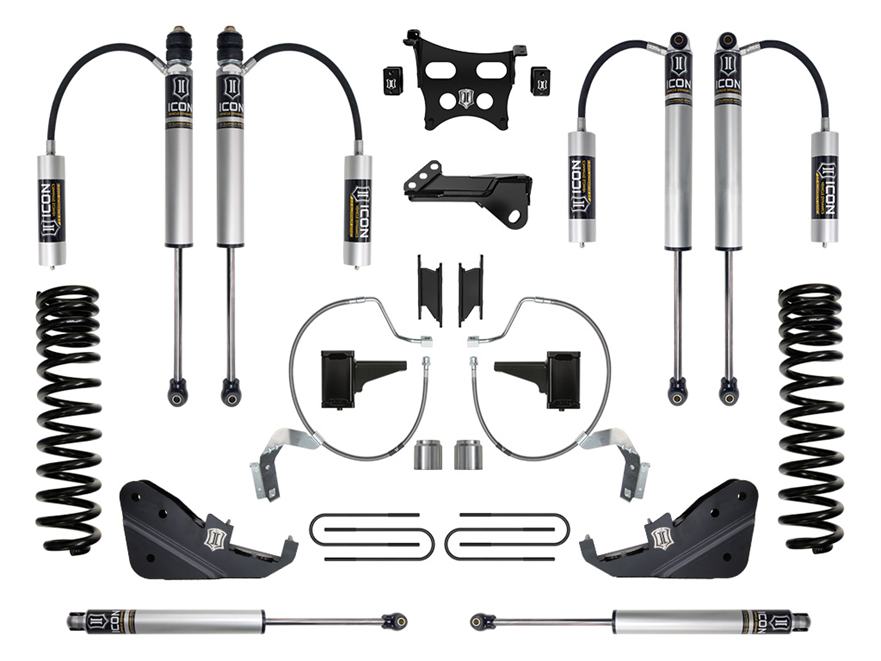

K64532/K64542 Shown



K64542    23 FORD F250/F350 4.5" STAGE 2 SUSPENSION SYSTEM DIESEL
K64542L    23 FORD F250/F350 4.5" STAGE 2 SUSPENSION SYSTEM DIESEL W/ EXPANSION PACKS
K64532    23 FORD F250/F350 4.5" STAGE 2 SUSPENSION SYSTEM GAS
K64532L    23 FORD F250/F350 4.5" STAGE 2 SUSPENSION SYSTEM GAS W/ EXPANSION PACKS
K63172    23 FORD F250/F350 4-5.5" STAGE 2 COILOVER CONVERSION SYSTEM
K63172L    23 FORD F250/F350 4-5.5" STAGE 2 COILOVER CONVERSION SYSTEM W/ EXPANSION PACKS




STAGE 3 SUSPENSION SYSTEMS



Stage 3 steps up to ICON's 2.5 VS front shocks (for coil spring kit variants) and 2.5 VS rear shocks. Stage 3 also begins availability for ICON's Radius Arm conversion systems, which provide enhanced axle control and better ground clearance than drop brackets.



K64533R/K64543R Shown



K64543    23 FORD F250/F350 4.5" STAGE 3 SUSPENSION SYSTEM DIESEL
K64543L    23 FORD F250/F350 4.5" STAGE 3 SUSPENSION SYSTEM DIESEL W/ EXPANSION PACKS
K64543R    23 FORD F250/F350 4.5" STAGE 3 SUSPENSION SYSTEM DIESEL W/ RADIUS ARMS
K64543RL    23 FORD F250/F350 4.5" STAGE 3 SUSPENSION SYS DIESEL RADIUS ARMS/EXPANSION PACKS
K64533    23 FORD F250/F350 4.5" STAGE 3 SUSPENSION SYSTEM GAS
K64533L    23 FORD F250/F350 4.5" STAGE 3 SUSPENSION SYSTEM GAS W/ EXPANSION PACKS
K64533R    23 FORD F250/F350 4.5" STAGE 3 SUSPENSION SYSTEM GAS W/ RADIUS ARMS
K64533RL    23 FORD F250/F350 4.5" STAGE 3 SUSPENSION SYSTEM GAS RADIUS ARMS/EXPANSION PACKS
K63173    23 FORD F250/F350 4-5.5" STAGE 3 COILOVER CONVERSION SYSTEM
K63173L    23 FORD F250/F350 4-5.5" STAGE 3 COILOVER CONVERSION SYSTEM W/ EXPANSION PACKS
K63173R    23 FORD F250/F350 4-5.5" STAGE 3 COILOVER CONVERSION SYSTEM W/ RADIUS ARMS
K63173RL    23 FORD F250/F350 4-5.5" STAGE 3 COILOVER CONV SYS RADIUS ARMS/EXPANSION PACKS




STAGE 4 SUSPENSION SYSTEMS



Stage 4 adds Remote Reservoirs to the front and rear 2.5 VS shocks (or coilovers) on all Stage variants. The big 2.5" diameter reservoirs significantly increase fluid volume to maximize heat dissipation and prolong damping performance over long sections of rough terrain. Stage 4 also adds ICON's Adjustable Track Bar kit for proper centering of the front axle.



K63174L Shown



K64544    23 FORD F250/F350 4.5" STAGE 4 SUSPENSION SYSTEM DIESEL
K64544L    23 FORD F250/F350 4.5" STAGE 4 SUSPENSION SYSTEM DIESEL W/ EXPANSION PACKS
K64544R    23 FORD F250/F350 4.5" STAGE 4 SUSPENSION SYSTEM DIESEL W/ RADIUS ARMS
K64544RL    23 FORD F250/F350 4.5" STAGE 4 SUSPENSION SYS DIESEL  RADIUS ARMS/EXPANSION PACKS
K64534    23 FORD F250/F350 4.5" STAGE 4 SUSPENSION SYSTEM GAS
K64534L    23 FORD F250/F350 4.5" STAGE 4 SUSPENSION SYSTEM GAS W/ EXPANSION PACKS
K64534R    23 FORD F250/F350 4.5" STAGE 4 SUSPENSION SYSTEM GAS W/ RADIUS ARMS

K64534RL    23 FORD F250/F350 4.5" STAGE 4 SUSPENSION SYSTEM GAS RADIUS ARMS/EXPANSION PACKS
K63174    23 FORD F250/F350 4-5.5" STAGE 4 COILOVER CONVERSION SYSTEM
K63174L    23 FORD F250/F350 4-5.5" STAGE 4 COILOVER CONVERSION SYSTEM W/ EXPANSION PACKS
K63174R    23 FORD F250/F350 4-5.5" STAGE 4 COILOVER CONVERSION SYSTEM W/ RADIUS ARMS
K63174RL    23 FORD F250/F350 4-5.5" STAGE 4 COILOVER CONV SYS RADIUS ARMS/EXPANSION PACKS




STAGE 5 SUSPENSION SYSTEMS



Stage 5 provides customization of suspension performance with the addition of ICON's Compression Damping Control Valve system on all four shocks. CDCV provides ten levels of manually adjustable compression damping to optimize performance for any on- or off-road conditions. Stage 5 also upgrades steering performance with ICON's Centerline Steering Stabilizer kit.

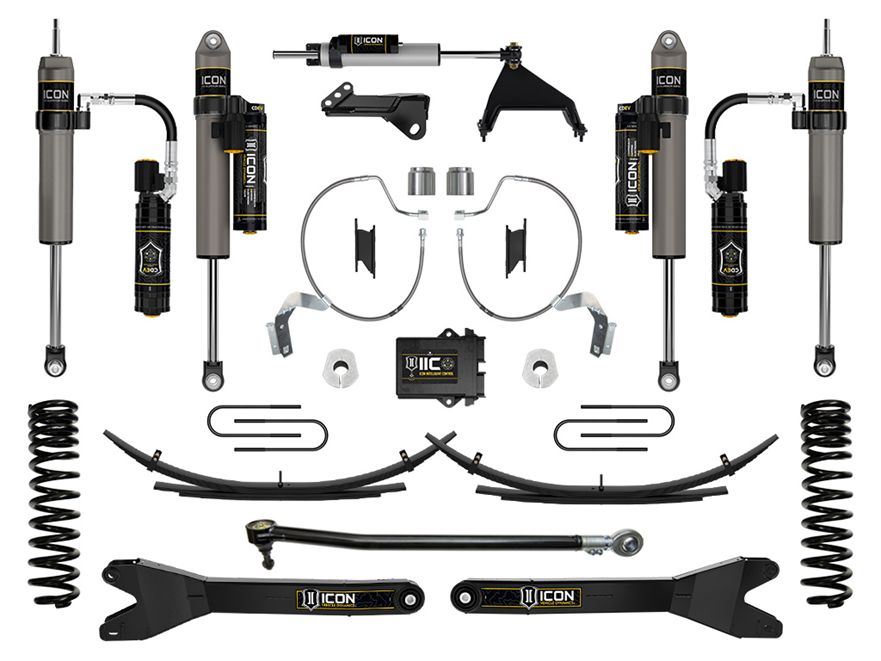

K64535RL/K64545RL Shown



K64545    23 FORD F250/F350 4.5" STAGE 5 SUSPENSION SYSTEM DIESEL
K64545L    23 FORD F250/F350 4.5" STAGE 5 SUSPENSION SYSTEM DIESEL W/ EXPANSION PACKS
K64545R    23 FORD F250/F350 4.5" STAGE 5 SUSPENSION SYSTEM DIESEL W/ RADIUS ARMS
K64545RL    23 FORD F250/F350 4.5" STAGE 5 SUSPENSION SYS DIESEL RADIUS ARMS/EXPANSION PACKS
K64535    23 FORD F250/F350 4.5" STAGE 5 SUSPENSION SYSTEM GAS
K64535L    23 FORD F250/F350 4.5" STAGE 5 SUSPENSION SYSTEM GAS W/ EXPANSION PACKS
K64535R    23 FORD F250/F350 4.5" STAGE 5 SUSPENSION SYSTEM GAS W/ RADIUS ARMS

K64535RL    23 FORD F250/F350 4.5" STAGE 5 SUSPENSION SYSTEM GAS RADIUS ARMS/EXPANSION PACKS
K63175    23 FORD F250/F350 4-5.5" STAGE 5 COILOVER CONVERSION SYSTEM
K63175L    23 FORD F250/F350 4-5.5" STAGE 5 COILOVER CONVERSION SYSTEM W/ EXPANSION PACKS
K63175R    23 FORD F250/F350 4-5.5" STAGE 5 COILOVER CONVERSION SYSTEM W/ RADIUS ARMS
K63175RL    23 FORD F250/F350 4-5.5" STAGE 5 COILOVER CONV SYS RADIUS ARMS/EXPANSION PACKS




STAGE 6 SUSPENSION SYSTEMS



Stage 6 introduces ICON's Front 4-Link Suspension system for ultimate axle control and suspension performance (Radius Arm variants not available for Stage 6). Stage 6 also includes ICON 2.5 VS Series front and rear shocks with remote reservoirs, and ICON's dual opposing steering stabilizer system.



K64536/K64546 Shown



K64546    23 FORD F250/F350 4.5" STAGE 6 SUSPENSION SYSTEM DIESEL
K64546L    23 FORD F250/F350 4.5" STAGE 6 SUSPENSION SYSTEM DIESEL W/ EXPANSION PACKS
K64536    23 FORD F250/F350 4.5" STAGE 6 SUSPENSION SYSTEM GAS
K64536L    23 FORD F250/F350 4.5" STAGE 6 SUSPENSION SYSTEM GAS W/ EXPANSION PACKS
K63176    23 FORD F250/F350 4-5.5" STAGE 6 COILOVER CONVERSION SYSTEM
K63176L    23 FORD F250/F350 4-5.5" STAGE 6 COILOVER CONVERSION SYSTEM W/ EXPANSION PACKS




STAGE 7 SUSPENSION SYSTEMS



Stage 7 builds on Stage 6 with CDCV adjustable valving and adds a secondary 2.5 VS Front Shock with Remote Reservoir, for even more damping performance, fluid capacity and heat dissipation. Unlike Stage 6, Stage 7 is available in both coil spring and coilover conversion variations.



K63177R Shown



K64547    23 FORD F250/F350 4.5" STAGE 7 SUSPENSION SYSTEM DIESEL
K64547L    23 FORD F250/F350 4.5" STAGE 7 SUSPENSION SYSTEM DIESEL W/ EXPANSION PACKS
K64537    23 FORD F250/F350 4.5" STAGE 7 SUSPENSION SYSTEM GAS

K64537L    23 FORD F250/F350 4.5" STAGE 7 SUSPENSION SYSTEM GAS W/ EXPANSION PACKS
K63177    23 FORD F250/F350 4-5.5" STAGE 7 COILOVER CONVERSION SYSTEM
K63177L    23 FORD F250/F350 4-5.5" STAGE 7 COILOVER CONVERSION SYSTEM W/ EXPANSION PACKS
K63177R    23 FORD F250/F350 4-5.5" STAGE 7 COILOVER CONVERSION SYSTEM W/ RADIUS ARMS
K63177RL    23 FORD F250/F350 4-5.5" STAGE 7 COILOVER CONVER SYS RADIUS ARMS/EXPANSION PACKS




STAGE 8 SUSPENSION SYSTEMS



Stage 8 utilizes ICON's proprietary Compression Damping Electronic Valve (CDEV) technology powered by ICON Intelligent Control (ICC). This system provides full electronic adjustability for ride quality as well as reactive, intelligent adjustment on-the-fly as the system reacts to inertia, terrain, and speed in microseconds. Standard Stage 8 comes with our 4-link Front Suspension system. Radius Arm kit, Coilover conversion, and Rear Leaf Expansion Pack are all optional, making Stage 8 completely configurable to your truck's individual needs.



K64538RL/K64548RL Shown



K64548    23 FORD F250/F350 4.5" STAGE 8 SUSPENSION SYSTEM DIESEL
K64548L    23 FORD F250/F350 4.5" STAGE 8 SUSPENSION SYSTEM DIESEL W/ EXPANSION PACKS
K64548R    23 FORD F250/F350 4.5" STAGE 8 SUSPENSION SYSTEM DIESEL W/ RADIUS ARMS
K64548RL    23 FORD F250/F350 4.5" STAGE 8 SUSPENSION SYS DIESEL RADIUS ARMS/EXPANSION PACKS
K64538    23 FORD F250/F350 4.5" STAGE 8 SUSPENSION SYSTEM GAS
K64538L    23 FORD F250/F350 4.5" STAGE 8 SUSPENSION SYSTEM GAS W/ EXPANSION PACKS
K64538R    23 FORD F250/F350 4.5" STAGE 8 SUSPENSION SYSTEM GAS W/ RADIUS ARMS

K64538RL    23 FORD F250/F350 4.5" STAGE 8 SUSPENSION SYSTEM GAS RADIUS ARMS/EXPANSION PACKS
K63178    23 FORD F250/F350 4-5.5" STAGE 8 COILOVER CONVERSION SYSTEM
K63178L    23 FORD F250/F350 4-5.5" STAGE 8 COILOVER CONVERSION SYSTEM W/ EXPANSION PACKS
K63178R    23 FORD F250/F350 4-5.5" STAGE 8 COILOVER CONVERSION SYSTEM W/ RADIUS ARMS
K63178RL    23 FORD F250/F350 4-5.5" STAGE 8 COILOVER CONV SYS RADIUS ARMS/EXPANSION PACKS




STAGE 9 SUSPENSION SYSTEMS



Stage 9 takes our top suspension system one step further with an additional pair of 2.5 VS CDEV secondary shocks in the front. The result is the pinnacle in long-haul suspension performance with double the front damping performance, fluid capacity, and heat dissipation, all utilizing the on-the-fly adjustability of ICON's proprietary CDEV system. As this system represents the ultimate in Super Duty suspension performance, Stage 9 is only available in our Coilover Conversion variations.

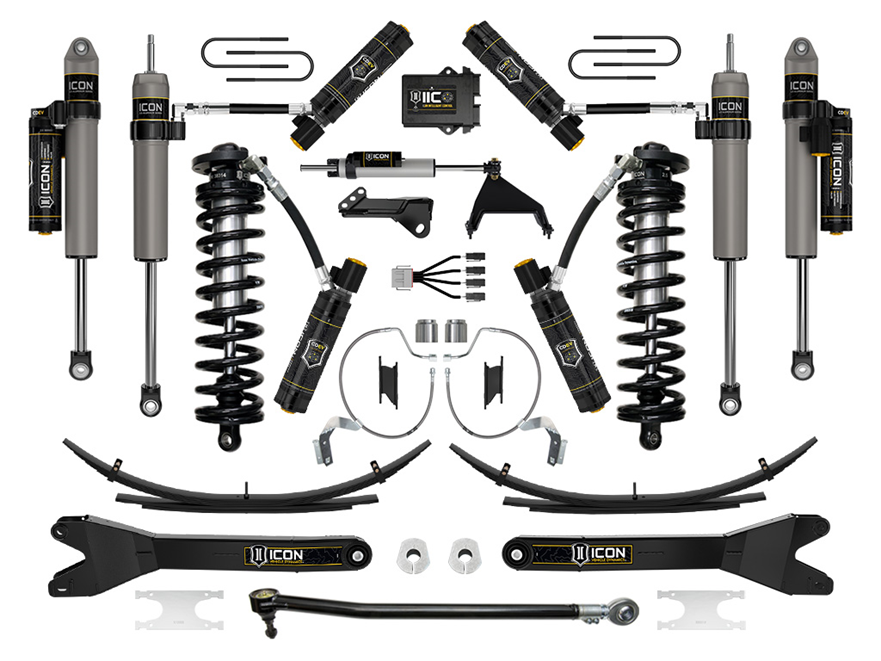

K63179RL Shown



K63179    23 FORD F250/F350 4-5.5" STAGE 9 COILOVER CONVERSION SYSTEM
K63179L    23 FORD F250/F350 4-5.5" STAGE 9 COILOVER CONVERSION SYSTEM W/ EXPANSION PACKS
K63179R    23 FORD F250/F350 4-5.5" STAGE 9 COILOVER CONVERSION SYSTEM W/ RADIUS ARMS
K63179RL    23 FORD F250/F350 4-5.5" STAGE 9 COILOVER CONV SYS RADIUS ARMS/EXPANSION PACKS




Call us today for more information or to place an order!
